Home / 3D Printers / Raise3D DF2 Basic Package
Raise3D · 3D Printers

Raise3D DF2 Basic Package

Read customer reviews ↗︎
€2.658,95 EUR

Pricing for Netherlands. Change country

€5.318,95Save €2.660,00
MAKE IT YOURS

Choose your setup. Pricing updates with your selection.

Estimated arrival: –

Delivery dates are estimates and may change. We’ll email you a tracking number once your order ships.

Shipping is calculated for your configuration and destination. Shipping details ↗

Secure checkout
American Express Apple Pay Mastercard Shop Pay Visa
Buying for an organization?

We accept purchase orders from Education, Government and Business customers.

Discuss a purchase order ↗︎
Price match guarantee

Found a lower eligible price? Review our guarantee and request a match.

See terms ↗︎
Manufacturer warranty

When you purchase from 3D Printers Depot®, a premium authorized retailer, your purchase includes the official manufacturer warranty and lifetime technical support.

Explore the details

Get to know your next machine.

Raise3D DF2 Basic Package

Please note that we can ship Raise3D printers only within the USA. Printers of all other brands on this website can be shipped internationally.

Get Extra 7% Off Raise3D 3D Printers & Accessories + Fast Shipping — Use Code “RAISE7”!

Price Guarantee: We provide all 3D printers with the lowest price in the USA. So if you find a lower price from an online retailer on an identical, in-stock product, tell us and we'll match the price.

Raise3D DF2 – DLP 3D Printer

Beyond Prototyping: Traceable Workflow from Start to Finish

The Raise3D DF2 Solution is a complete Digital Light Printing (DLP) 3D printer that excels in rapid printing, smooth surface quality, refined details, and remarkable reliability. DF2 resin DLP printer has been optimized for engineering prototyping, manufacturing aids and low-volume production with a diverse selection of high-performance engineering resins. RFID technology ensures a traceable workflow throughout the entire print, wash, and cure process, reducing labor time and saving costs.

Traceable RFID Workflow Provides Consistent Results

At the heart of DF2 DLP 3D printer’s traceable workflow is RFID technology, used together with ideaMaker to confirm that the correct settings are being used for each batch of prints. Once the resin type is verified, the DF2 Printer, DF Wash and DF Cure settings are automated using built-in settings profiles. This not only saves operational time and costs by reducing the chance of human error, but also ensures a consistent workflow and reproducible print results from batch to batch.

High-Definition Detail Inspires Greater Design Freedom

As a DLP solution, with a resolution of 2560 x 1440, combined with advanced features such as Contour Compensation and Anti-Aliasing, the DF2 produces significantly finer details and smoother surfaces compared to other 3D printing technologies. This results in greater opportunities for very small parts with a high level of definition. Additionally, advanced optical design and system calibration ensure smoothness and accuracy at every step.

  • Light engine with Texas Instruments’ First Industrial-grade DMD Chip for digital light processing printing
  • Premium light output quality with frame size error ≤ ±0.1 mm and distortion rate ≤ 0.1%
  • Clear pixel image without superimposed effects or surface light field effect

Increased First Print Success Rate

DF2 resin 3D printers are engineered to yield a high print-success rate through both mechanical design and software support:

  • Optimizations in ideaMaker, including Auto Support, Auto Orientation, and Suction Cup Detection, improve DF2’s first print success rate and reduce the need for time-consuming reprints. (Learn more about ideaMaker support for DF2 solution)
  • Air-Peel technology decreases the amount of force exerted on the part to facilitate easy layer detachment, further improving the reliability of print results.
  • Maximum part weight of 10 kg ensures high print quality in the Z-direction for any size print, which is supported by a heavy-duty Z-axis structure that can withstand up to 200 kg of static load.

Open Platform for Approved Resins

Raise3D continues to make innovations in material science, having developed a wide variety of DLP Resins for industrial applications optimized for the Raise3D DF2 resin printers. Raise3D proudly collaborates with top strategic partners such as Henkel and Forward AM, to expand the range of approved resins for DF2.

DF2 Key Features:

RFID-Powered Smart Build Platform

RFID automatically stores and reads the relevant parameters of an entire workflow for printing, washing, and curing, reducing the need for tedious manual operations.

Industrial Grade Optical Design

Industrial-grade optical components include Texas Instruments’ first Industrial-Grade DMD Chip, High-Transparency nFEP Film, and Optical Glass made by Schott Germany.

They are used throughout the entire optical path projection system to reduce loss, and eliminate dispersion, thus ensuring the reproduction of sharp layers.

Software That Simplifies

ideaMaker has added new features designed for use with the Raise3D DF2 printer to reduce learning curves, expand design possibilities, and improve the success rate of DLP printing.

These features include:

  • Antialiasing
  • Auto Support
  • Auto Orientation
  • Auto Cross Section Analysis
  • Contour Compensation
  • Suction Cup Detection
  • Hollow
  • Drainage Hole
  • Texture Generation
  • Smaller Gcode Size

Magic Layout at Your Fingertips

A high-performance 10.25-inch touchscreen lets you make instantaneous changes to your files without needing to return to your slicing software.

Magic Layout allows for the easy adjustment of the print layout and duplicate prints.

Automatic Pre-Print Inspection verifies all working conditions, including resin type, build platform installation, feeding station installation, resin margin, and more.

Air-peel lightens the Load

Air-Peel technology used between the resin vat bottom and the highly clear glass reduces the peeling force from 50 kilograms to 10 kilograms, effectively helping to peel each layer and ensuring successful print results.

High-Load Capacity Z-Axis

The Z-axis features a maximum load capacity of 200kg, with high movement accuracy and no staggered layers. This ensures stability when printing large parts and during extended use.

Streamlined Resin Management

Auto Resin Refill, Ultrasonic Liquid Level Monitoring, and Assisted Resin Tank Cleanup to minimize contact with uncured resin.

The DF Wash flushing system streamlines the solvent removal process with automated drainage and an easy-to-operate automatic pump.

Raise3D Warranty

Raise3D DF2 Series Printer RaiseShield Pro – 1 Additional Year: Full warranty coverage of electrical and mechanical components of Raise3D DF2/DF2+ printers for 1 year, consumables and cosmetic imperfection not included.

Raise3D DF2 Series Printer RaiseShield Pro – 2 Additional Years: Full warranty coverage of electrical and mechanical components of Raise3D DF2/DF2+ printers for 2 years, consumables and cosmetic imperfection not included.

Technical Specifications

Model Raise3D DF2
Printer
Hardware
Print Technology Digital Light Printing (DLP)
Build Size (W × D × H) 200 × 112 × 300 mm (7.87 × 4.41 × 11.8 inch)
XY Resolution 2560 × 1440
Max Part Weight 10 kg
Max Printing Speed 80 mm/h (0.2 mm per layer)
Layer Height 50-200 micron
Resin Management Auto Resin Feeding, Resin Level Detection, Resin Confirmation
Control Panel Touch Screen (Resolution: 1920 × 720) with Magic Layout (Allow to
easily adjust the print layout and duplicate prints)
RFID Print Platform Record the type of resin used and the printing, washing and curing
settings
Level Calibration Calibrated in factory
Chamber Heating Max 40℃
Resins
Raise3D Resins Raise3D Standard White Resin, Raise3D High Detail Apricot Resin,
Raise3D Tough 2K Grey Resin, Raise3D Rigid 3K Grey Resin,
Raise3D High Clear Resin, Raise3D Draft Grey Resin,
Raise3D High Temperature Resin (Coming soon)
OMP (Open Material Program) LOCTITE® 3D IND405™, LOCTITE® 3D PRO476™, LOCTITE® 3D 3843™,
LOCTITE® 3D PRO410™, LOCTITE® 3D PRO417™
Ultracur3D® RG 3280, Ultracur3D® RG 1100 B, Ultracur3D® EL 60,
Ultracur3D® EL 4000
Software
and
Network
Connectivity Wi-Fi, LAN, USB port × 2, Live Camera
Network Ethernet, Wireless 802.11 b/g/n
Slicing Software ideaMaker
(Features: Antialiasing; Auto Support; Auto Orientation; Auto Cross
Section Analysis; Contour Compensation; Suction Cup Detection;
Hollow; Drainage Hole; Texture Generation; Smaller Gcode Size)
Remote Management Software RaiseCloud (Coming soon)
Supported File Types STL/ OBJ/ 3MF/ OLTP
Supported OS WINDOWS/ macOS/ LINUX
Operation
and Shipping
Power Supply Input 100-240 V AC, 50/60 Hz 230 V @ 3.3 A
Operating Ambient Temperature 15 - 30°C, 10 - 90% RH Non-Condensing (HOLD)
Storage Temperature -25 to 55°C, 10 - 90% RH Non-Condensing (HOLD)
Machine Size (W × D × H) 450 × 408 × 730 mm (17.7 × 16.1 × 28.7 inch)
Net Weight 40 kg (88.2 lbs)
Gross Weight 59.4 kg (131 lbs)
Shipping Dimensions 710 × 595 × 980 mm (28.0 × 23.4 × 38.6 inch)

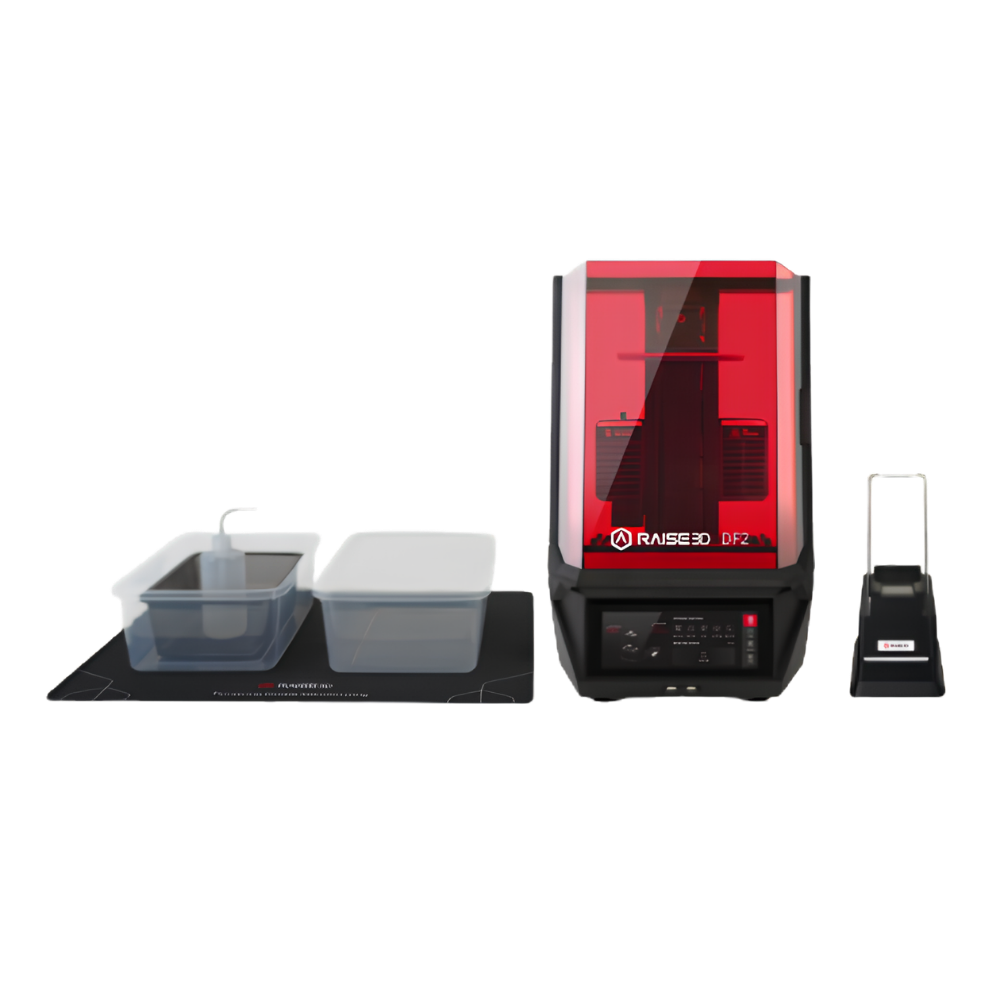

Raise3D DF2 Basic Package Inclusions

This product contains Auto Feeding Station, Resin Tank, Smart Build Plate, Tool Box, and Finish Box. This printer does not come with resins.

Specification

Model Raise3D DF2
Printer
Hardware
Print Technology Digital Light Printing (DLP)
Build Size (W × D × H) 200 × 112 × 300 mm (7.87 × 4.41 × 11.8 inch)
XY Resolution 2560 × 1440
Max Part Weight 10 kg
Max Printing Speed 80 mm/h (0.2 mm per layer)
Layer Height 50-200 micron
Resin Management Auto Resin Feeding, Resin Level Detection, Resin Confirmation
Control Panel Touch Screen (Resolution: 1920 × 720) with Magic Layout (Allow to
easily adjust the print layout and duplicate prints)
RFID Print Platform Record the type of resin used and the printing, washing and curing
settings
Level Calibration Calibrated in factory
Chamber Heating Max 40℃
Resins
Raise3D Resins Raise3D Standard White Resin, Raise3D High Detail Apricot Resin,
Raise3D Tough 2K Grey Resin, Raise3D Rigid 3K Grey Resin,
Raise3D High Clear Resin, Raise3D Draft Grey Resin,
Raise3D High Temperature Resin (Coming soon)
OMP (Open Material Program) LOCTITE® 3D IND405™, LOCTITE® 3D PRO476™, LOCTITE® 3D 3843™,
LOCTITE® 3D PRO410™, LOCTITE® 3D PRO417™
Ultracur3D® RG 3280, Ultracur3D® RG 1100 B, Ultracur3D® EL 60,
Ultracur3D® EL 4000
Software
and
Network
Connectivity Wi-Fi, LAN, USB port × 2, Live Camera
Network Ethernet, Wireless 802.11 b/g/n
Slicing Software ideaMaker
(Features: Antialiasing; Auto Support; Auto Orientation; Auto Cross
Section Analysis; Contour Compensation; Suction Cup Detection;
Hollow; Drainage Hole; Texture Generation; Smaller Gcode Size)
Remote Management Software RaiseCloud (Coming soon)
Supported File Types STL/ OBJ/ 3MF/ OLTP
Supported OS WINDOWS/ macOS/ LINUX
Operation
and Shipping
Power Supply Input 100-240 V AC, 50/60 Hz 230 V @ 3.3 A
Operating Ambient Temperature 15 - 30°C, 10 - 90% RH Non-Condensing (HOLD)
Storage Temperature -25 to 55°C, 10 - 90% RH Non-Condensing (HOLD)
Machine Size (W × D × H) 450 × 408 × 730 mm (17.7 × 16.1 × 28.7 inch)
Net Weight 40 kg (88.2 lbs)
Gross Weight 59.4 kg (131 lbs)
Shipping Dimensions 710 × 595 × 980 mm (28.0 × 23.4 × 38.6 inch)



Raise3D DF2 Basic Package Inclusions

This product contains Auto Feeding Station, Resin Tank, Smart Build Plate, Tool Box, and Finish Box. This printer does not come with resins.
