Cubicon MAX 600 Large SLA 3D Printer With The Highest Speed and Precision
Brand: Cubicon
Regular price
$138,000.00
$126,400.00
On Sale
Estimated Arrival: Between Dec 07 and Dec 13.
Shipping: Free Fast Shipping for All Orders Over $199!
Cubicon MAX 600 Large SLA 3D Printer With The Highest Speed and Precision
🚚 In stock and ready to ship on the same or the next business day from the local warehouse. 🚚
Price Guarantee: We provide all 3D printers with the lowest price in the USA. So if you find a lower price from an online retailer on an identical, in-stock product, tell us and we'll match the price.
High-speed and high precise SLA 3D printer with a huge building volume
The Cubicon Max 600 is an SLA ( StereoLithography Apparatus ) 3D printer that uses stereolithography technology. It is a powerful and reliable SLA 3D printer with some unique features and is the ideal industrial printer for large projects, small batch production, and full-scale prototyping with professional results.
The Cubicon MAX 600 is designed for industrial use and is capable of producing large, detailed parts with high precision and accuracy. The SLA printing process involves using a laser to solidify layers of liquid resin, resulting in a smooth surface finish and excellent detail resolution.
Overall, the Cubicon MAX 600 is a powerful and versatile 3D printer that is well-suited for a wide range of applications in industries such as automotive, aerospace, and manufacturing.
Core Spot Size Variable System for High Speed and Precision Printing
A laser spot size variable-specific precision optical system developed by the High Vision System was applied to Cubicon MAX600 which allows for size variations in the 80 ~ 700um range. With this feature, the output can be printed precisely on the outside and at high speed on the inside of the output.
Extend product ideas utilizing a variety of output materials
Cubicon MAX600 can print various materials, including ABS-Like, heat-resistant, transparent, and soft materials. By selecting and utilizing materials for 3D printing purposes, it supports users in realizing more diverse product ideas.Precise Tilting Calibration with the Auto-Collimator
The self-developed, Cubicon MAX600 exclusive Auto-Collimator measuring system ensures precision tilting calibration with high resolving power (0.001268 deg).Cubicon MAX600 has a surface illumination of less than 0.01 deg between the Recorder and the resin, resulting in cleaner quality output than conventional SLA-type 3D printers, even without surface processing.
Recoater Auto-Leveling realizes Optimal Output Quality
'Recoater Auto Leveling' is a technique that consistently applies the resin level for the next layer output after a single layer output, which is an important factor in determining the output quality. Cubicon MAX 600 automatically adjusts the distance between the recoater and the resin level to maintain optimum output quality with precise stacking thickness.
Anti-vibration & Output Quality Improvement with a single-design structure

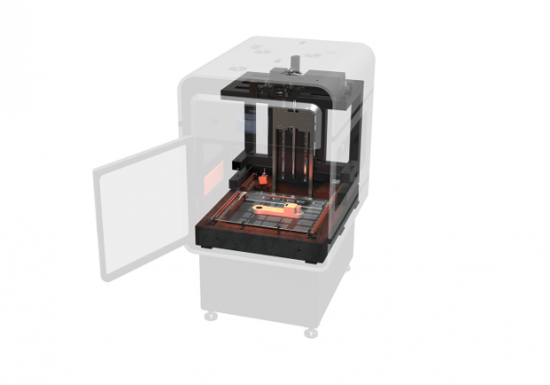

With a bundle structure of three major units (Laser/Optical Part, Recoater, Build plate, Z-Axis motor) of 3D printers on a granite plate, Cubicon MAX600 is designed with an exclusive technique of high vision systems that separates the bundle unit from the outer. In addition, an anti-vibration damper is installed between the table, which is the only contact surface of the granite plate, and the granite plate to minimize vibration from all directions and improve output stability.
Full Solution of CUBICON MAX 600
High-Vision Systems offers unique solutions to the entire process from the 3D printing data design stage to the post-processing stage. We provide user-friendly 3D printing and ensure high-quality outputs.
Easy and convenient 3D data editing with Magics compatibility
Effective 3D printing data preparation, along with its default performance of 3D printers, improves the completeness of the output and reduces the overall printing time. Cubicon MAX600 is compatible with the industrial standard program, Materialise Build SW 'Magics', and makes it easy and convenient for anyone to edit 3D printing data.
SPECIFICATIONS:
| Build Envelope Capacity | 600 × 600 × 400 mm (Full Vat) |
|---|---|
| Maximum Part Weight | 70 kg |
| Accuracy | ± 0.1mm (Part size < 100mm) / ± 0.1% × L |
| Beam Size | 80μm to 700μm (Adjustable spot size) |
| Scanning Speed | 6~10 m/s (SCANLAB) |
| Layer Thickness | 0.05~0.25 mm |
| Machine Size | W1150 × D1250 × H1920 mm |
| Laser | Solid-state frequency tripled Nd : YVO4, 3W |
| Wavelength | 355 nm |
| Part Preparation | Materialise Magics |
| Operating System | Windows 7, Windows 10* |
| Input Data File Format | STL, SLC |
| Electrical Requirements | 200~240 VAC, 50/60 Hz |
| Laser Warranty | 5,000 hours or 17 months (whichever comes first) |
| Recoater Type | Hyvision Recoater Auto Leveling & Tilt Calibration System |
| Systems Control | Closed-loop |
| Build Envelope Capacity | 600 × 600 × 400 mm (Full Vat) |
|---|---|
| Maximum Part Weight | 70 kg |
| Accuracy | ± 0.1mm (Part size < 100mm) / ± 0.1% × L |
| Beam Size | 80μm to 700μm (Adjustable spot size) |
| Scanning Speed | 6~10 m/s (SCANLAB) |
| Layer Thickness | 0.05~0.25 mm |
| Machine Size | W1150 × D1250 × H1920 mm |
| Laser | Solid-state frequency tripled Nd : YVO4, 3W |
| Wavelength | 355 nm |
| Part Preparation | Materialise Magics |
| Operating System | Windows 7, Windows 10* |
| Input Data File Format | STL, SLC |
| Electrical Requirements | 200~240 VAC, 50/60 Hz |
| Laser Warranty | 5,000 hours or 17 months (whichever comes first) |
| Recoater Type | Hyvision Recoater Auto Leveling & Tilt Calibration System |
| Systems Control | Closed-loop |
