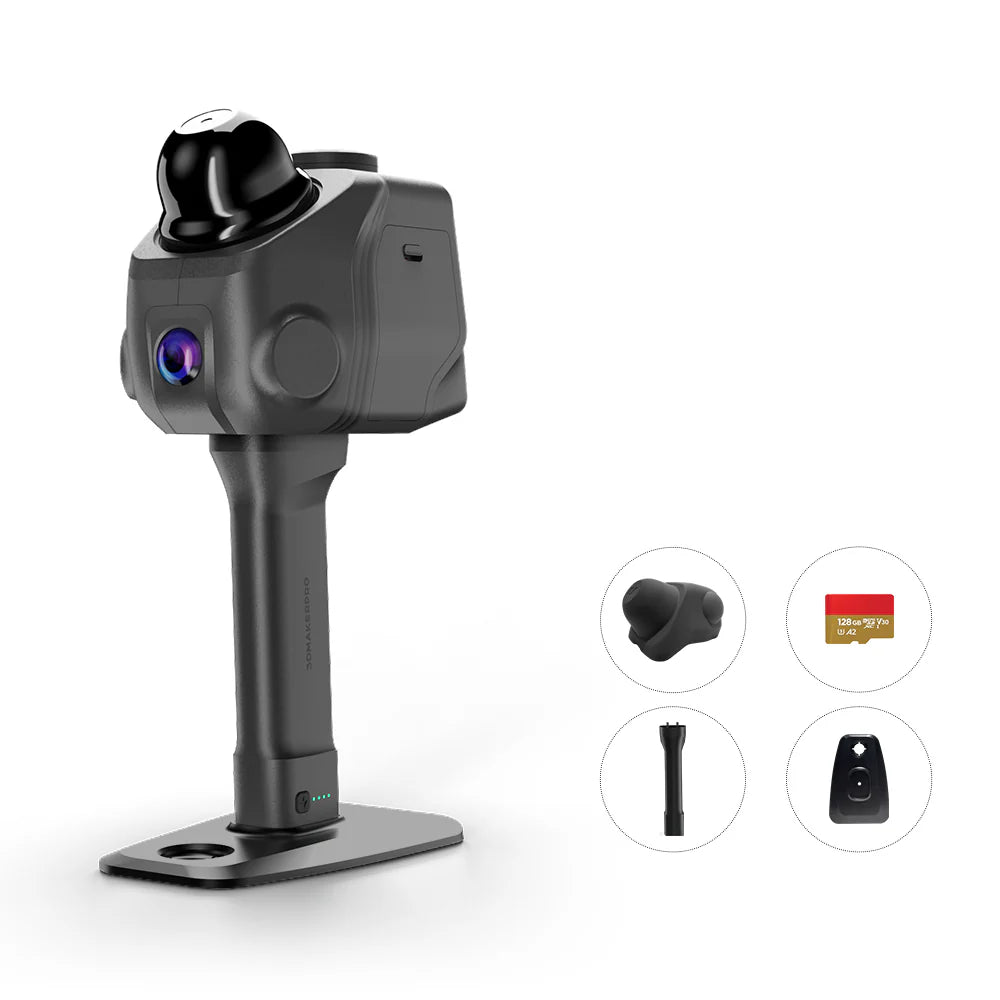

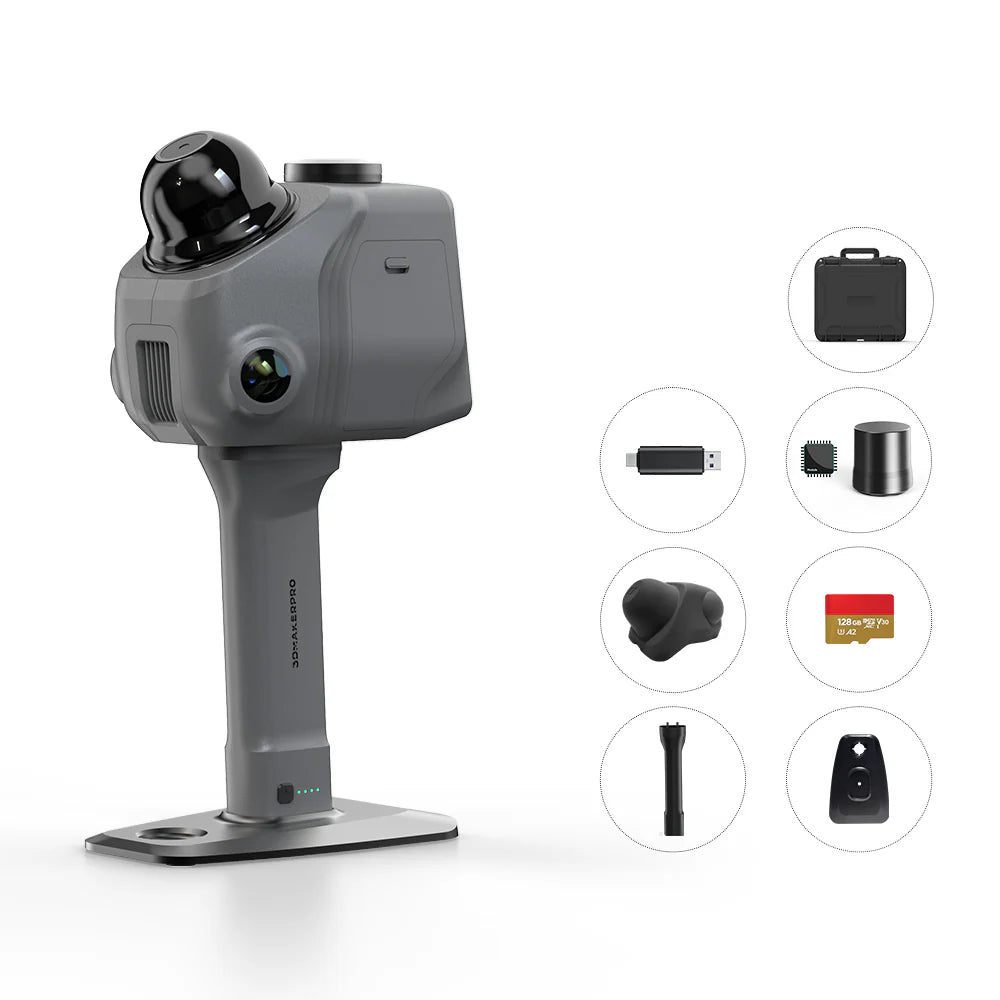

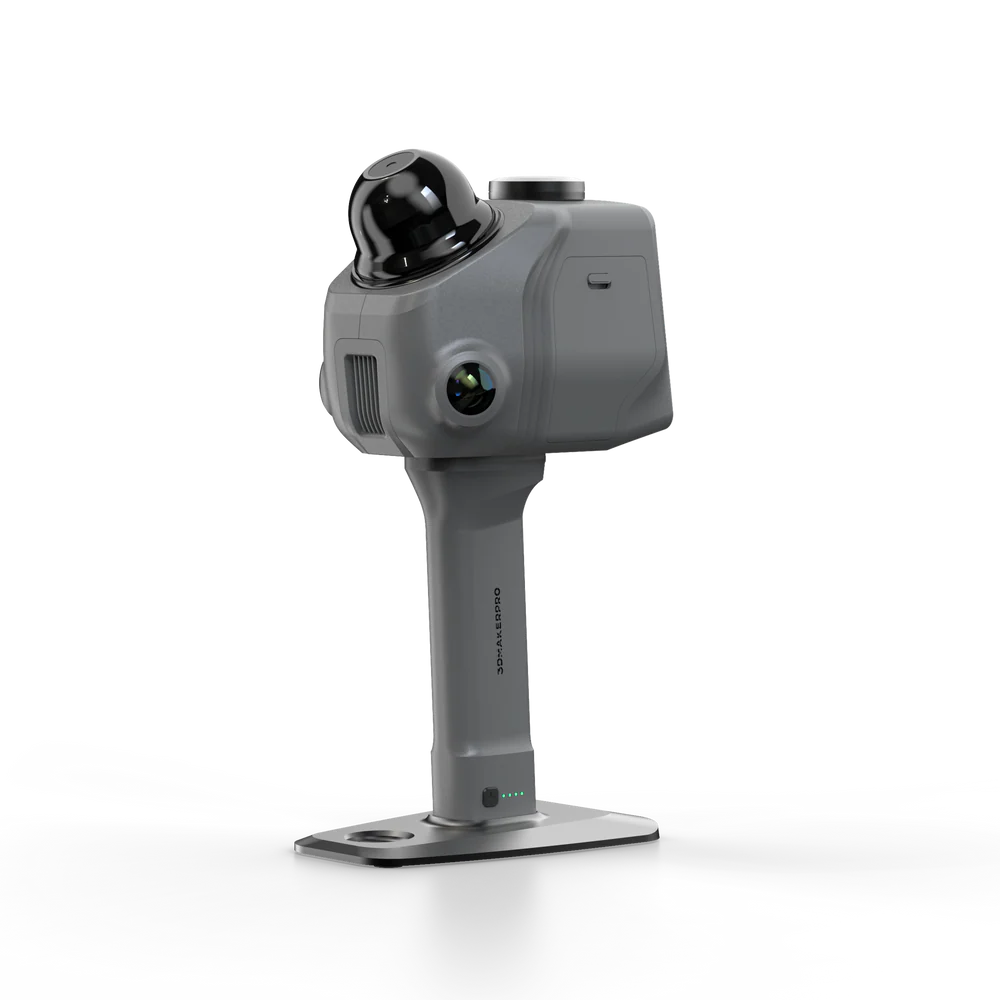

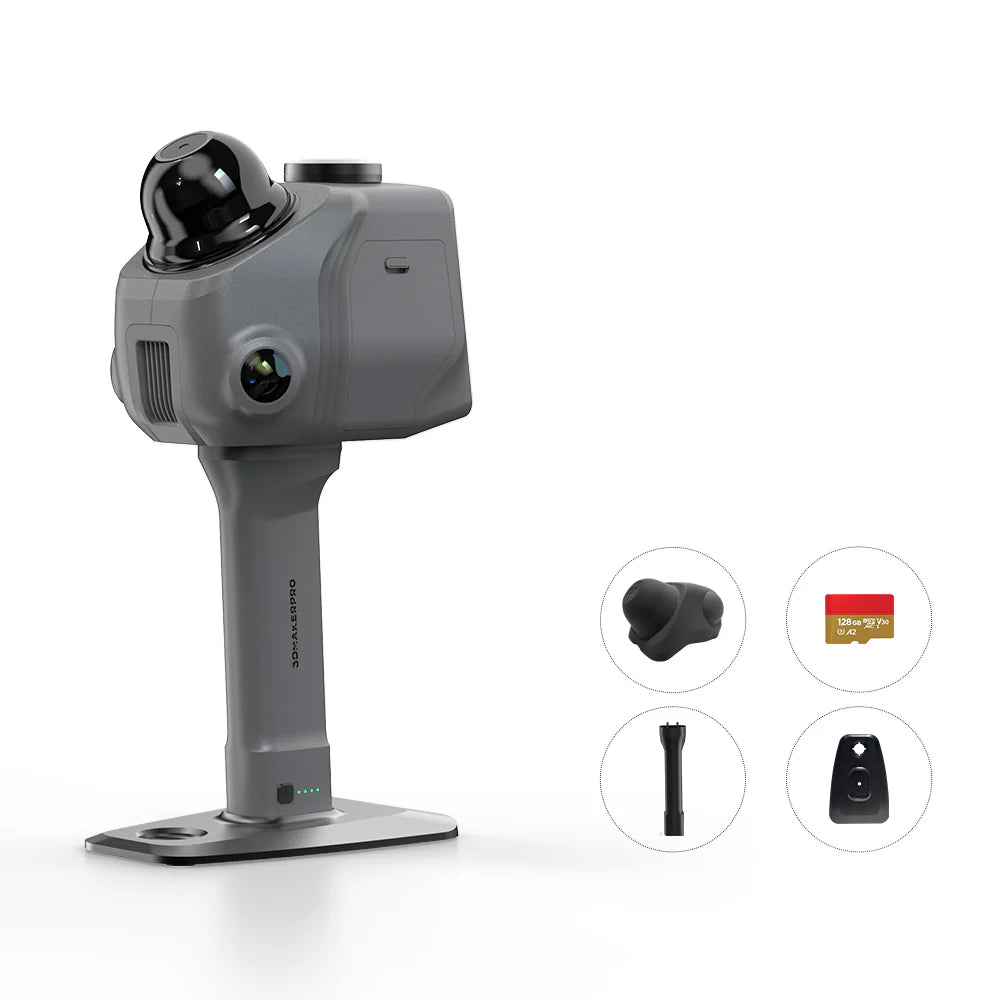

3DMakerPro Raven LiDAR Spatial Scanner
Brand: 3DMakerpro
Regular price
€4.516,95
€1.706,95
On Sale
Estimated Arrival: Between May 21 and May 27.
Shipping: Free Fast Shipping for Most Orders Over $199!*
*Eligibility varies by product.
3DMakerPro Raven LiDAR Spatial Scanner
Price Guarantee: We provide all 3D printers with the lowest price in the USA. So if you find a lower price from an online retailer on an identical, in-stock product, tell us and we'll match the price.
Introducing Raven Handheld LiDAR Scanner by 3DMakerpro
Grab it and go. Raven packs a 50m scanning radius into a pocket-sized body, allowing you to map entire stadiums in under 5 minutes. The 12MP camera system (Dual on Max) and optional 360 camera support deliver breathtaking RGB and Gaussian Splatting assets. Powered by 2-hour quick-swap batteries, your projects never hit pause.
Key Features:
STABLE LARGE-SCALE SPATIAL CAPTURE
- 50 M
- SCANNING RADIUS
- 360°×40° Ultra-Wide FOV
- 2 CM ACCURACY
Precision Scanning, Simplified
Combining robust SLAM algorithms, a 50m extended range, and an ultra-wide FOV, Raven Lidar effortlessly captures large, complex environments with high precision.
Focus on Scanning, Not Technique
Enhanced SLAM combines point cloud, image, IMU, and GPS data for cross-validation. This reduces point-cloud drift caused by operator movement and ensures each scan is accurately aligned within the scene.
Compact Device, Massive Coverage

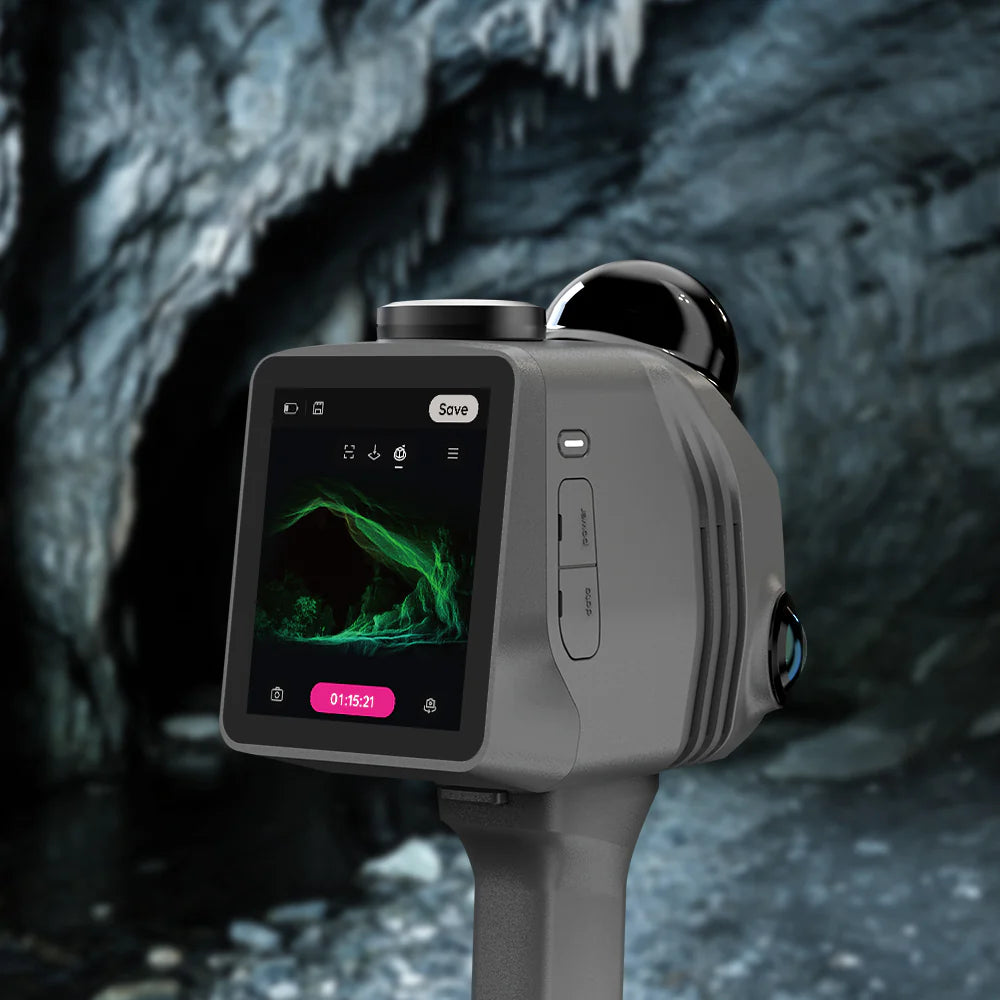

With an effective detection range of 40–50 meters, Raven dramatically improves scanning efficiency for large environments such as caves, stadiums, and urban streets.
See More, Miss Less
Raven features a scanning field of view of 360° × 40°, effectively reducing blind spots at the top and bottom of the scanning area and ensuring reliable single-pass capture.
HIGH-FIDELITY VISUAL RECONSTRUCTION
- 12 MP Fisheye Camera
- 1/2" Sensor Size
- 4K True-Color Capture
From Reality to Digital Color
The 12 MP 1/2-inch high-fidelity camera system captures detailed 4K imagery and automatically adapts exposure for both indoor and outdoor environments.
These images are used to generate RGB point clouds and Gaussian splatting scenes with realistic color and lighting.
Built for Advanced Visual Capture
For higher-level visual workflows, Raven supports external third-party 360 cameras, enabling broader viewpoints and higher-resolution color capture when needed.
Continuous Creativity
Each battery supports up to 2 hours of scanning and features a quick-swap design so your projects can continue without interruption.

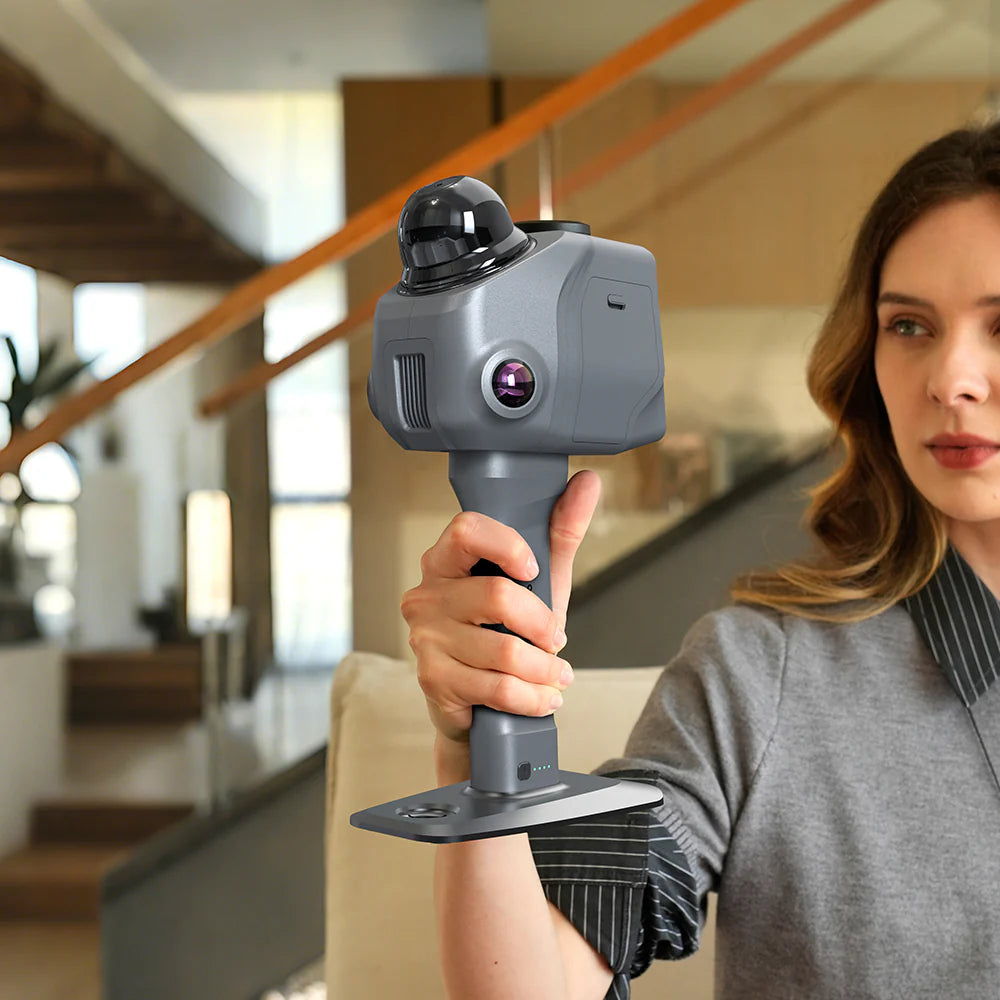

Lightweight Mobility
Weighing only 1100 g, Raven is designed to be carried anywhere. Its compact body combines powerful scanning capabilities in a highly portable form factor.
RAVEN: YOUR PERSONAL SPATIAL SCANNER.
Early Captures from Raven
From monochrome to colorized point clouds, new examples will be added regularly. Stay tuned as we continue to reveal more.
Pro Scanning. Anywhere.
Take survey-grade precision wherever your project goes.
Pocket-Sized Pro Gear
20mm Accuracy | 1.1kg Lightweight
Achieve survey-grade precision anywhere with an ultra-lightweight design.
Pro-Grade RGB Capture
1/2" 12MP Camera | Supports 360° Cameras
Capture stunning true-to-life colors or attach a 360° camera for hyper-realistic textures.

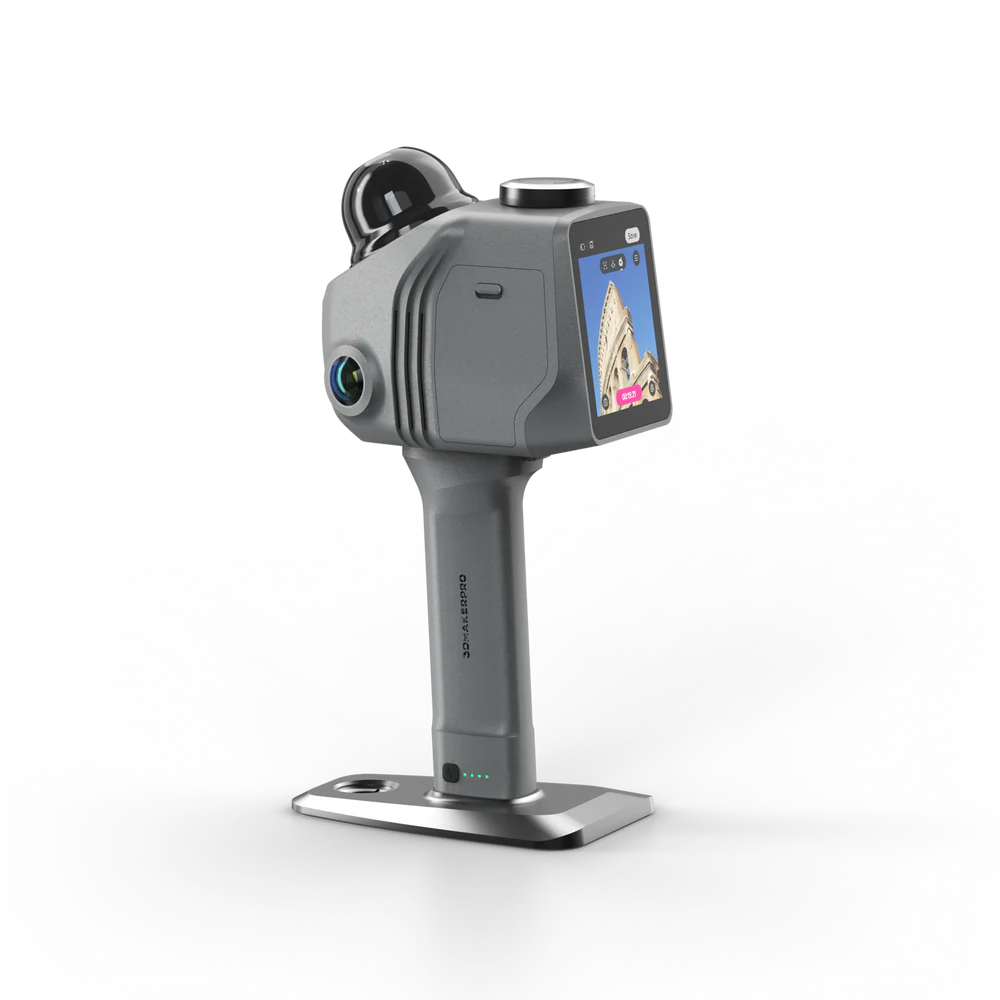

Bigger, Brighter Display
3.9” AMOLED | 700nits
Monitor your scanning in real-time with crystal clarity, even under direct sunlight.
Media Coverage
Recognized by leading media for professional LiDAR scanning and real-world applications.
Youtube Reviews of Raven LiDAR Scanner
This review demonstrates Raven's performance in large-scale building scanning, highlighting stable point cloud capture in outdoor environments.
A Complete Ecosystem for Every Project
Transform your workflow with swappable batteries, enhanced RGB modules, and versatile mounting solutions.
Battery Grip
Provides up to 120 minutes of operating time. The quick-release design allows batteries to be swapped instantly in the field, enabling continuous scanning without waiting for recharging.
360 Camera Kit
Allows external 360 cameras to be mounted for higher-resolution image capture, enabling the generation of higher-quality RGB point clouds and Gaussian Splatting. Compatible with selected 360 cameras, such as Insta360 X4 and Insta360 X5.
Bicycle Kit
It can allow the product to be mounted on a bicycle or motorcycle to capture 3D street scenes.
Automotive Rooftop Mount
Mount your 3D scanner securely on vehicle rooftops for dynamic scanning applications in automotive industries.
Backpack Kit
Carry your 3D scanner and accessories conveniently with this ergonomic backpack, designed for mobility.
Complete Software Ecosystem
RayStudio: Powering Your Workflow
Experience a seamless journey from point cloud capture to final render. RayStudio equips you with the tools to process, inspect, and export with effortless precision.
-
Seamless Workflow Integration
- RayStudio supports all major industry standard formats, ensuring your data is ready for any CAD, BIM, or 3D design software instantly.
-
Inspect Every Detail
- Dive deep into your scans with advanced visualization tools, offering multiple perspectives and color mappings for professional analysis.
-
AI-Powered Denoising for Clean Point Clouds
- Remove unwanted noise from your scans with a single click. RayStudio's AI-driven point cloud denoise algorithm delivers cleaner results, streamlines post-processing, and improves overall scanning efficiency.
-
Algorithmic Optimization for Precision Modeling
- Using advanced point cloud optimization algorithms, RayStudio automatically refines data density and surface accuracy, ensuring every 3D reconstruction achieves professional-grade precision.
JIMUMETA: Host and Showcase Your Creations.
Seamlessly upload, manage, and share your panoramic tours and Gaussian Splatting. JIMUMETA offers flexible free and commercial hosting to bring your projects online.
See What Raven Can Do
Explore professional-grade scan data from specialized Raven Lidar Scanner applications. Experience a seamless workflow for diverse industries, transforming physical environments into precise 3D point clouds and immersive digital scenes.
Built for Advanced Visual Capture
Project type: Colored point cloud
Site Surveying: Build color-accurate 3D point clouds for outdoor architectural planning and project site analysis.
Villa structure
Project type: Monochrome point cloud
BIM & Renovation: Extract precise structural wireframes for building design, asset management, and renovation.
Cave cross-section
Project type: Monochrome point cloud
Engineering & Geology: Generate detailed cross-sections for cave monitoring and complex topographical research.
Villa interior
Project type: Gaussian Splatting
Real Estate: Create high-fidelity 3D digital twins for property tours, home inspections, and digital listings.
Underground parking lot
Project type: Gaussian Splatting
Infrastructure Planning: Map underground spaces using Raven's superior low-light performance for facility management.
Technical Specifications
| Scanning Performance | |
| Accuracy |
2cm @10 meters 3cm @20 meters 5cm @40 meters |
| Scan radius |
40 m @10% reflectivity 50 m @80% reflectivity |
| Scan range | 80-100 meters |
| Scan angle (FOV) | Horizontal 360° Vertical 40° |
| Point cloud frequency | 150,000 points/second |
| Imaging & Optics | |
| Sensor size | 1/2" |
| Color texture |
Raven: *1 12MP camera system Raven Max/ Raven Max RTK: *2 12MP camera system |
| HDR mode | No |
| Laser light source | 905 nm |
| Eye safety level | Class 1 (IEC60825-1:2014) Eye safe |
| Hardware & Interfaces | |
| Configuration | 8 Cores 2.4GHz 32GB (Supports TF card expansion) |
| Screen | 3.9" AMOLED |
| Handle battery |
12000mAh supports 2 hour of work, supports external power supply while charging |
| Data interface | *1 USB Type-C |
| Power delivery | *1 PD 65W USB Type-C |
| Network support | Wi-Fi 5 |
| Expansion support |
RTK Expansion kit (Raven Max RTK) insta360 X4/X5 Expansion kit Various Accessories (Bicycle Kit, Automotive Kit, Backpack Kit, Drone kit, etc) |
| Physical Specifications | |
| Weight | 1.1kg |
| Volume | 148*288*98mm |
| Software & System Requirements | |
| Output format | LAS PCD PLY OBJ E57 XYZ |
| OS Requirements | Windows 11+ (Incompatible with macOS) |
| Recommended Configuration |
Processor: Intel Core i7 Memory: 64GB RAM Graphics Card: NVIDIA RTX 4060, 16GB VRAM Note: Gaussian Splatting is only supported on NVIDIA GPUs. |
| Minimum Configuration |
Processor: Intel Core i7 Memory: 32GB RAM Graphics Card: NVIDIA RTX 3060, 8GB VRAM Note: Gaussian Splatting is only supported on NVIDIA GPUs. |
What's Inside The Box?
| Scanning Performance | |
| Accuracy |
2cm @10 meters 3cm @20 meters 5cm @40 meters |
| Scan radius |
40 m @10% reflectivity 50 m @80% reflectivity |
| Scan range | 80-100 meters |
| Scan angle (FOV) | Horizontal 360° Vertical 40° |
| Point cloud frequency | 150,000 points/second |
| Imaging & Optics | |
| Sensor size | 1/2" |
| Color texture |
Raven: *1 12MP camera system Raven Max/ Raven Max RTK: *2 12MP camera system |
| HDR mode | No |
| Laser light source | 905 nm |
| Eye safety level | Class 1 (IEC60825-1:2014) Eye safe |
| Hardware & Interfaces | |
| Configuration | 8 Cores 2.4GHz 32GB (Supports TF card expansion) |
| Screen | 3.9" AMOLED |
| Handle battery |
12000mAh supports 2 hour of work, supports external power supply while charging |
| Data interface | *1 USB Type-C |
| Power delivery | *1 PD 65W USB Type-C |
| Network support | Wi-Fi 5 |
| Expansion support |
RTK Expansion kit (Raven Max RTK) insta360 X4/X5 Expansion kit Various Accessories (Bicycle Kit, Automotive Kit, Backpack Kit, Drone kit, etc) |
| Physical Specifications | |
| Weight | 1.1kg |
| Volume | 148*288*98mm |
| Software & System Requirements | |
| Output format | LAS PCD PLY OBJ E57 XYZ |
| OS Requirements | Windows 11+ (Incompatible with macOS) |
| Recommended Configuration |
Processor: Intel Core i7 Memory: 64GB RAM Graphics Card: NVIDIA RTX 4060, 16GB VRAM Note: Gaussian Splatting is only supported on NVIDIA GPUs. |
| Minimum Configuration |
Processor: Intel Core i7 Memory: 32GB RAM Graphics Card: NVIDIA RTX 3060, 8GB VRAM Note: Gaussian Splatting is only supported on NVIDIA GPUs. |
What's Inside The Box?
