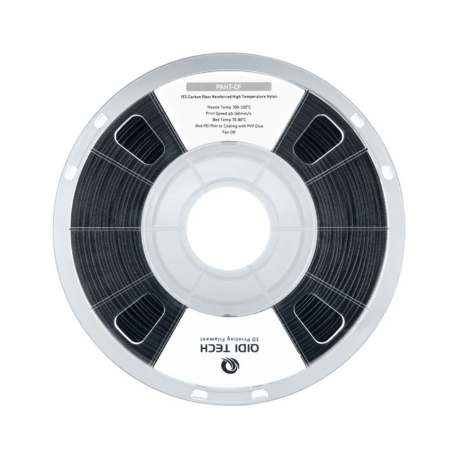

QIDI PAHT-CF (PPA-CF) 1.75mm 1 kg Filament

QIDI PAHT-CF (PPA-CF) 1.75mm 1 kg Filament

Special Offer! Get Extra 7% Off + Free Fast Shipping + No Sales Tax ➤ Use Code "3DSALE"! Limited Time Offer!

3D Printers Depot is proud to be an exclusive QiDi Technology Premium Reseller in the USA.

🚚 In stock and ready to ship on the same or the next business day from the local warehouse. 🚚

Price Guarantee: We provide all 3D printers with the lowest price in the USA. So if you find a lower price from an online retailer on an identical, in-stock product, tell us and we'll match the price.

• 0.2 mm Nozzle Not Compatible
• Brass/Copper plated Nozzle Not Recommended
• Dry before Use
• Enclosed Printer Required

QIDI PAHT-CF(PPA-CF) 3D Printer Filament

QIDI PAHT-CF(PPA-CF) is specially developed for the FDM 3D printing process. The substrate is made of QIDI UltraPA(PPA), a high-temperature nylon with low moisture absorption, high strength, high abrasion resistance, excellent chemical resistance and high heat resistance, good dimensional stability, and no warping during the printing process.

Higher Strength

QIDI TECH PAHT-CF (PPA-CF) filament has a flexural modulus of up to 6.9 GPa. Smart Fiber Reinforced Technology greatly improves the mechanical properties and heat resistance of the material, and releases the internal stress during the printing process through the fiber mesh structure, resulting in good dimensional stability of the printed part.

Temperature and Humidity Resistance

QIDI TECH PAHT-CF(PPA-CF) Filaments have good tensile and flexural strength performance in both wet and dry environments.

Display of PAHT-CF(PPA-CF) Prints

Accessory Compatibility

	Recommended	Not Recommended
Build Plate	QIDI PEI Plate, HF Plate and Smooth Plate	PC Plate
Hotend	Hardened Steel Nozzle ( 0.4 / 0.6 / 0.8 mm) Bimetal Nozzle ( 0.4 / 0.6 / 0.8 mm)	Brass/Copper plated Nozzle (0.2/0.4/0.6/0.8 mm)
Glue	PVP glue/ 3D LAC adhesive spray	/

Recommended Printing Settings
Drying Settings (Blast Drying Oven)	80-100 °C，4-6 h
Printing and Keeping Container's Humidity	< 15% RH (Sealed, with Desiccant)
Nozzle Temperature	300 - 320 °C
Bed Temperature (with Glue)	70-90 °C
Printing Speed	< 30-120 mm/s

Physical Properties
Density	1.20 g/cm³
Water absorption	1.37 %
Heat Deflection Temperature(Unannealed)	84.8 °C
Heat Deflection Temperature(Annealed)	190.7°C
Melting Temperature	237 °C
Melt Index	3.4 g/10 min

Mechanical Properties
Tensile Strength	93.15±1.64 MPa
Breaking Elongation Rate	1.92±0.10 %
Bending Modulus	6727.22±382.20 MPa
Bending Strength	144.00±1.87 MPa
Impact Strength	10.37±0.27 KJ/m2

Printing Tips

• PAHT material is very sensitive to moisture. Printing after absorbing moisture will result in oozing, extruding with bubbles and rough surface appearance, thus reducing print quality. It is recommended that put the filament into a dry box (humidity below 15%) immediately after opening the QIDI PAHT-CF vacuum foil bag for printing. Please put the unused filament back into the original aluminum foil bag for sealed storage.
• After the printing, the printed part can be annealed to further improve the strength of QIDI PAHT-CF print part. Annealing conditions: place the printed part at 80-100°C for 4-6 hours and cool to room temperature naturally.

Vacuum Aluminum Foil Packaging

According to the test, the water vapor transmission rate of ordinary sealed packaging is 4.76%, while the water vapor transmission rate of vacuum aluminum foil packaging we use is only 0.014%. It can be seen that vacuum aluminum foil packaging is more water-resistant.

QIDI TECH PAHT-CF filament 1.75 mm. Works perfectly with most FDM 3D printers on the market.
